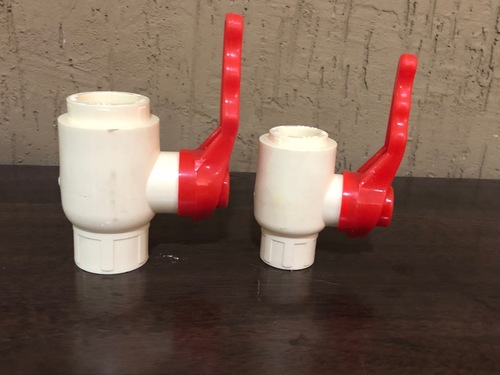

CPVC Ball Valve

CPVC Ball Valve
CPVC Ball Valve
Product Code : 02
Product Description
We have a CPVC(Chlorinated Polyvinyl Chloride) Ball Valve with high efficiency for our esteemed clients at economical costs. It can use in cold and hot both applications in industry, residential and different fields. Accessible in sizes 25mm*63mm. It has a splendid consumption resistive light weighted body. These valves are made by us utilizing optimum quality material with the help of innovative techniques and dependable technology. Under the strict precision of our employees these CPVC(Chlorinated Polyvinyl Chloride) Ball Valves are checked and certified on various quality parameters.

Specifications:

  • 25mm*63mm

The True Union Ball Valve is employed in several applications where corrosive chemicals and acids are taken into use in place of stainless systems once a better corrosion resistance is wanted. They are taken into use in a diversity of applications like water, industrial water treatment, chemical production, pulp & paper, plating & metal treatment, refinishing and power plants.

Product Features & Benefits:

  • NSF specialized for Potable water use
  • Pressures up to 222 psig
  • Complete bore flow through
  • Bubble fitted shut off
  • True union design permits easy fitting into prevailing piping
  • Complete rated back pressure
  • EPDM and PTFE or FPM seals
  • Pneumatic choice available
  • Completely serviceable, disposable components

Advantages:

  • It is a completely unionized valve that positions up to the strictest industrial applications.
  • Size : variety between 3/8" / d16mm up to 2" / d63mm
  • Pressure rating: Supreme working pressure i.e. 16 bar at 20oC (PP = 10Bar at 20oC)
  • The locking device safeguards the union nuts are reserved in position, even below the most difficult conditions which is vibration or thermal extension
  • Convenient elimination of valve body from the pipe system, letting standby of the valve seals and seats with no any extra equipment
